Off Road Car Winch With 28m Rope – 2040kg Towing Capacity With Roller Giude

Efficient winch from the German brand MSW, designed for hauling vehicles or other objects out of difficult terrain. It will work well in mountainous places or when driving off-road. It fits almost every ATV , trailer and can also be used in households, for example removing tree stumps, logs and the like.

The 1.3 HP (1000 W) motor, along with a large drum, magnet (brushless design) and strong steel cable, achieves a pulling force of 4500 lbs (2040 kg). This allows for quick and easy retrieval of the vehicle from a ditch or other terrain obstacle. The assembly of the winch is facilitated by the use of a special mounting plate.

Three-speed planetary gearbox(forward and reverse gear and a manual clutch for quick unwinding the rope) enables the power transmission to be regulated by means of a special gear. The reduction ratio is 153: 1. The intermittent duty cycle, on the other hand, allows the engine to run in intervals so that it does not reach the highest temperature.

In order to increase the durability of the device, the set includes a strong steel rope (12.5 m long / 5.5 mm in diameter) , which, thanks to the four-track guide, is resistant to most mechanical damage, even during frequent changes of the pulling angle. The automatic braking system is responsible for safety , which will keep the item being pulled out, even if there is no electricity.In addition, the winch structure is resistant to overloads as well as rain, snow and dirt.

Product Features:
• Efficiency – the 1000 W motor generates a pulling force of up to 2040 kg
• Speed – 8 m / min pull
• Precision – Three-speed gearbox with a reduction ratio of 153: 1
• Durability – strong steel rope
• Safety – protection against overheating, overload and automatic braking system
• Convenience – remote control with a long cable, convenient mounting plate and compact size

Technical Parameters:
• Model – PROPULLATOR 4500-B
• Catalog number – 10060673
• Item condition – New
• Housing material – Aluminum
• Rope material – Steel
• Engine power – 1.6 HP / 1200 W
• Voltage – 12 V
• Motor type – Permanent magnet motor
• Duty cycle – Intermittent
• Gearbox – 3-stage planetary gear
• Gear ratio – 153: 1
• Pulling force – 2040 kg / 4500 lbs
• Pulling speed – 8 m / min
• Rope length – 12.5 m
• Rope diameter – 5.5 mm
• Rope protection system – 4-stage guide
• Drum diameter – 41 mm
• Braking system – Automatic
• Clutch type – Slip ring
• Remote control type – Wired
• Mounting plate included – Yes
• Dimensions (LxWxH) – 32.7 x 11.5 x 11.5 cm
• Weight – 8.48 kg
• Shipping dimensions (LxWxH) – 41 x 28 x 18 cm
• Shipping weight – 12.8 kg

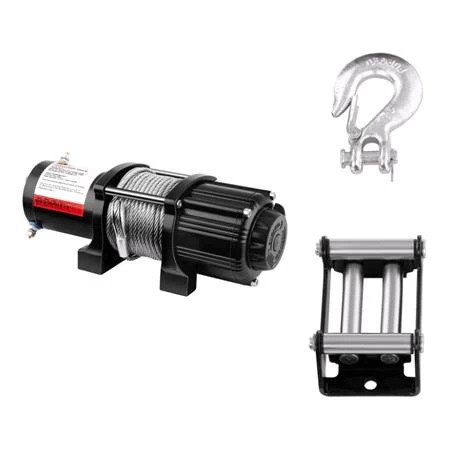

Included:
• Winch
• Control box with wires
• Mounting clamp for the box – 2 pcs
• Wired remote control
• Mounting plate
• 4-track roller rope guide
• Hook
• Mounting accessories
• Instruction PL
