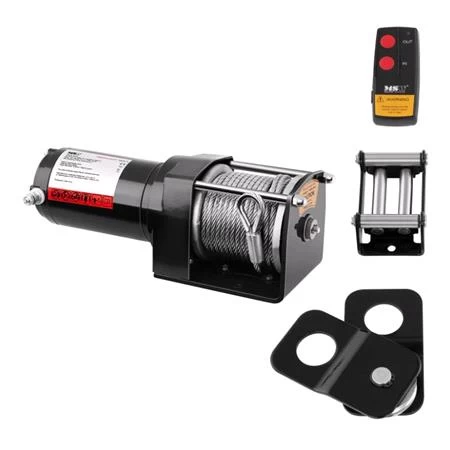

Off Road Car Winch With Remote Control And 12m Rope – 1590kg Towing Capacity With 4t Pulley

An efficient winch by the German brand MSW, designed for hauling vehicles or other objects out of difficult terrain. It will work well in mountainous places or when driving off-road. Perfect for large, heavy vehicles, trailers, boats and snow plows. It can also be used in households or in forestry, for example when removing tree trunks or logs.

The 1.3 HP (1000 W) engine, along with a large drum and strong steel cable, achieves a pulling force of 3500 lbs (1590 kg). This allows for quick and easy retrieval of the vehicle from a ditch or other terrain obstacle.

The three-stage planetary gearbox (forward and reverse gear and a manual clutch for quick unwinding of the rope) allows you to adjust the power transmission with a special gear. The reduction ratio is 153: 1. The intermittent duty cycle, on the other hand, allows the engine to run in intervals so that it does not reach the highest temperature.

In order to increase the durability of the device, the set includes a steel rope (12 m long / 5.5 mm in diameter) , which, thanks to the four-track guide, is resistant to most mechanical damage, even when frequently changing the angle of hauling. The automatic braking system is responsible for safety , which will keep the item being pulled out, even if there is no electricity. In addition, the winch structure is resistant to overloads as well as rain, snow and dirt.

Product Features:
• Efficiency – the 1000 W motor generates a pulling force of up to 1590 kg
• Speed – pull 6.4 m / min
• Precision – Three-speed gearbox with a reduction ratio of 153: 1
• Durability – strong steel rope
• Safety – protection against overheating, overload and automatic braking system
• Convenience – two remote controls (wireless and wired) and a structure resistant to moisture and dirt

Technical Parameters:
• Model – PROPULLATOR 3500-B
• Catalog number – 10060661
• Item condition – New
• Housing material – Aluminum
• Rope material – Steel
• Engine power – 1.3 HP / 1000 W
• Voltage – 12 V
• Motor type – Permanent magnet motor
• Duty cycle – Intermittent
• Gearbox – 3-stage planetary gear
• Gear ratio – 153: 1
• Drawbar Pull – 1590 kg / 3500lbs
• Pulling speed – 6.4 m / min
• Rope length – 12 m
• Rope diameter – 5.5 mm
• Rope protection system – 4-stage guide
• Drum diameter – 27 mm
• Braking system – Automatic
• Clutch type – Pull -type clutch
• Remote control type – 1 x wired / 1 x wireless
• Wireless remote control range – 30 m
• Block – 1 x 4 t
• Mounting plate included – Yes
• Dimensions (LxWxH) – 30 x 10 x 10.5 cm
• Weight – 5.71 kg
• Shipping dimensions (LxWxH) – 29 x 34 x 17 cm
• Shipping weight – 10.4 kg

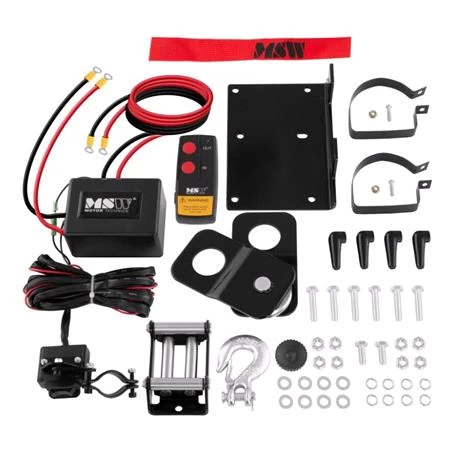

Included:
• Winch
• Control box with wires
• Mounting clamp for the box – 2 pcs.
• Wired remote control
• Wireless remote control
• Mounting plate
• 4-way rope roller guide
• Block block (4t)
• Hook
• Mounting accessories
• Instruction PL
