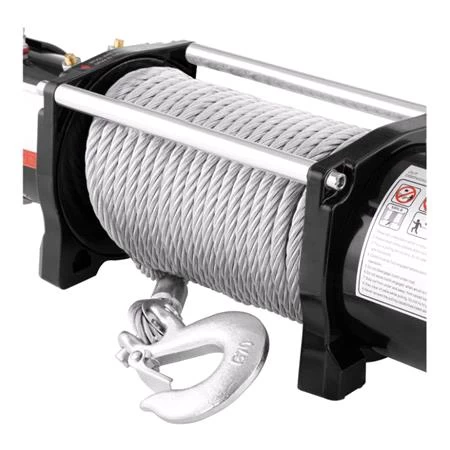

Off Road Car Winch With Remote Control And 28m Rope – 4310kg Towing Capacity With 8t Pulley

An efficient winch by the German brand MSW, designed for hauling vehicles or other objects out of difficult terrain. It will work well in mountainous places or when driving off-road. Perfect for large, heavy vehicles, trailers, boats and snow plows. It can also be used in households or in forestry, for example when removing tree trunks or logs.

The 5.5 HP (4000 W) motor, along with a large drum and strong steel cable, achieves a pulling force of 9,500 lbs (4,310 kg). In addition, the DC design facilitates quick and easy retrieval of the vehicle from a ditch or other terrain obstacle.

The three-stage planetary gearbox (forward and reverse gear and a manual clutch for quick unwinding of the rope) allows you to adjust the power transmission with a special gear. The reduction ratio is 265: 1. The intermittent duty cycle, on the other hand, allows the engine to run in intervals so that it does not reach the highest temperature.

In order to increase the durability of the device, the set includes a steel rope (28 m long / 9.5 mm in diameter) , which, thanks to the four-track guide, is resistant to most mechanical damage, even when changing the angle of hauling frequently. The automatic braking system is responsible for safety , which will keep the item being pulled out, even if there is no electricity. In addition, the winch structure is resistant to overloads as well as rain, snow and dirt.

Product Features:
• Efficiency – the 4000 W engine generates a pulling force of up to 4310 kg
• Speed – 7.8 m / min pull
• Precision – Three-speed gearbox with a reduction ratio of 256: 1
• Durability – strong steel rope
• Safety – protection against overheating, overload and automatic braking system
• Convenience – two remote controls (wireless and wired) and a structure resistant to moisture and dirt

Technical Parameters:
• Model – PROPULLATOR 9500-A
• Catalog number – 10060663
• Item condition – New
• Housing material – Steel
• Rope material – Steel
• Engine power – 5.5 HP / 4000 W
• Voltage – 12 V
• Motor type – DC series motor
• Duty cycle – Intermittent
• Gearbox – 3-stage planetary gear
• Gear ratio – 11.0423611111111
• Drawbar Pull – 4310kg / 9500lbs
• Pulling speed – 7.8 m / min
• Rope length – 28 m
• Rope diameter – 9.5 mm
• Rope protection system – 4-stage guide
• Drum diameter – 64 mm
• Braking system – Automatic
• Clutch type – Slip ring
• Remote control type – 1 x wired 1 x wireless
• Wireless remote control range – 30 m
• Block – 1 x 8 t
• Dimensions (LxWxH) – 54.50 x 16.80 x 15.50 cm
• Weight – 32.60 kg
• Shipping dimensions (LxWxH) – 61.00 x 34.00 x 26.00 cm
• Shipping weight – 38.50 kg

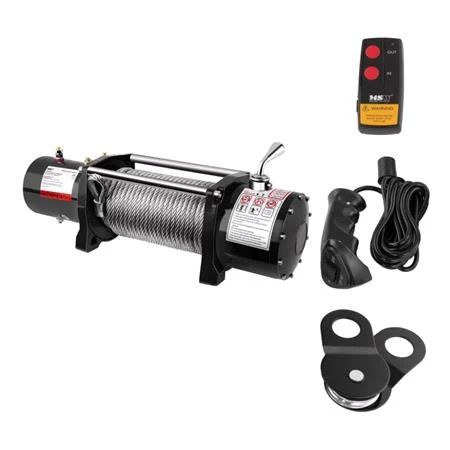

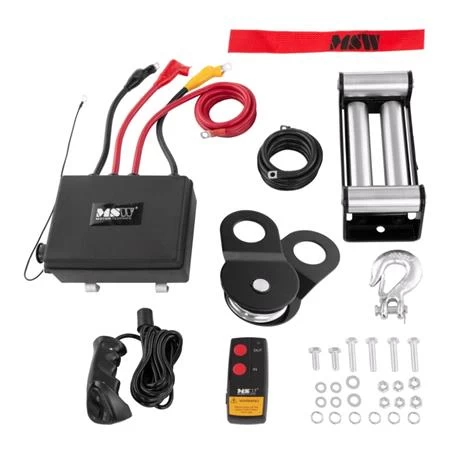

Included:
• Winch
• Control box with wires
• Wired remote control
• Wireless remote control
• 4-track roller rope guide
• Block block (8 t)
• Hook
• Mounting accessories
• Instruction PL
